Electrical Connectors

The removable terminal blocks are supplied with all equipment.  Depending on the model these are the below types.

What is the 3 Position connector?

The connector is a standard European removable terminal block, 3 position 5.00 millimeter. Accepts wire range 12 to 26 AWG.  Electrical rating of connector 300V, 15A.  Wire strip length 5.0mm.  Max torque 5 in-lbs.

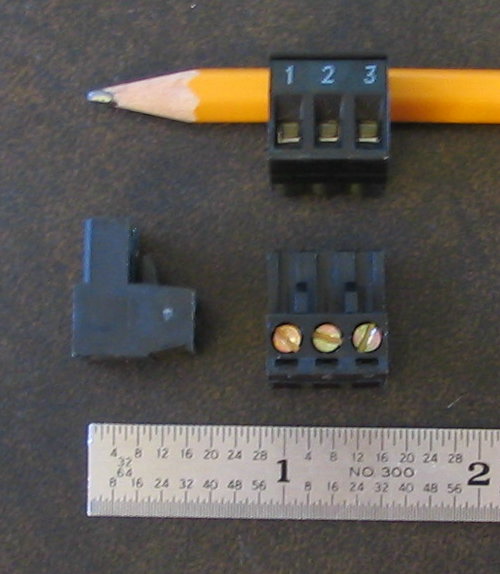

 Photo of 3 pin terminal block

Manufacturer   Part numbers
 Molex           39520-0003, 39520-0103,39520-5003
 Kobiconn       P035ESDVP
 Buchanan       796640-3
 On Shore     ED950-3
 Weidmuller   1625610000
 Phoenix Contact   1754465




What is the 5 Position connector?

The connector is a standard European removable terminal block, 5 position 3.50 millimeter. Accepts wire gauge 16 to 24 AWG.   Electrical rating of connector 300V, 8A.  Wire strip length 5.0 mm. Max torque 3 in-lbs.

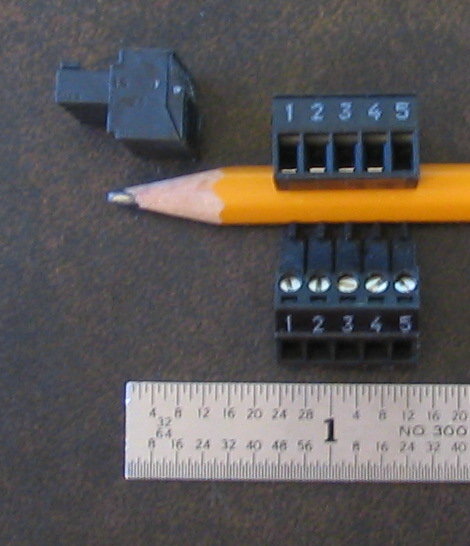

 Photo of 5 pin terminal block

Manufacturer   Part numbers
 Molex           39500-0105  or 39351-0005
 On Shore    ED1550-5-BK, ED1550-5-BK / 12345 L-R
 Phoenix Contact   MC 1.5/5-ST-3.5,  MCVR 1.5/5-ST-3.5, MCVW 1.5/5-ST-3.5





What is the 16 Position connector?

The connector is a standard European removable terminal block, 16 position 3.50 millimeter. Accepts wire gauge 16 to 24 AWG.  Electrical rating of connector 300V, 8A.  Wire strip length 5.0 mm.  Max torque 3 in-lbs.

 Photo of 3 pin terminal block

Manufacturer   Part numbers
 Molex           39500-0116,39351-0016
 On Shore    ED1550-16-BK / 12345 L-R
