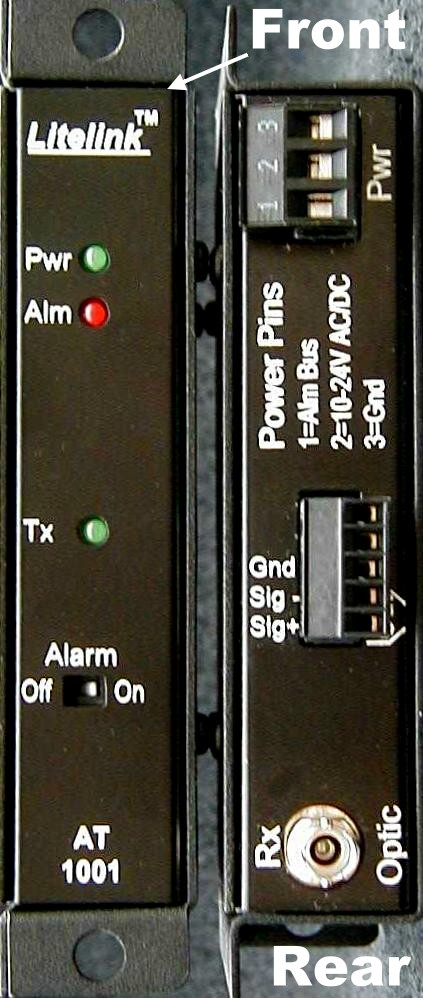

Audio Transmission System     Click for Larger image Balance Audio Transmitter
Fiber Optic Audio Transmission

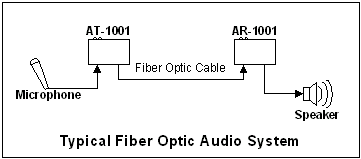

 Typical Fiber Optic Audio Application


The LiteLink AT/AR-1001 system consists of the AT-1001 transmitter and AR-1001 receiver. The system provides high quality line level audio signals for a multitude of applications including public address systems, intercoms and general-purpose audio point-to-point distribution systems.

Both multimode and single-mode versions are available and installation requires just a single one-minute adjustment. In addition, integral indicators are provided on both units to continuously indicate the presence of audio signals as well as operating power making system troubleshooting simple.

For bidirectional audio see the AX-1001  transceiver. For distribution systems the AM-1004 is a transmitter with one audio input and four optical outputs.

Specifications Important Features
Audio Bandwidth  30 Hz to 50 KHz (+0,-3dB)     12 dB Loss Budget
Input/Output Impedance  600 ohms   Signal & Power Indicators
Input/Output Configuration  balanced or unbalanced   Cost Effective
Input/Output Level  3 volt pp (1 volt rms)   Stand-alone, DIN or Rack
    Mountable (same unit)

Signal/Noise Ratio*  60 dB minimum
Linearity and THD*  3% maximum
Operating Wavelength  850, 1310 or 1550nm
Optical Loss Budget  0-12 dB (multimode),
 0-12 dB (single-mode)

Optical Connectors ST (multimode)
FCPC (single-mode)
Operating Temperature -35 to +75 C
Humidity <95% non-condensing
MTBF (per MIL HBK 217D) >120,000 hours
Power Requirements  11-24 VAC/DC @150mA
Physical Size (mm)  5.0 W x 1.0"H x 3.0"L
(127mm  x 25.4mmx 76mm)


Note all specifications are subject to change without notice.

*Measured with 1Km of 62.5u multimode fiber.
