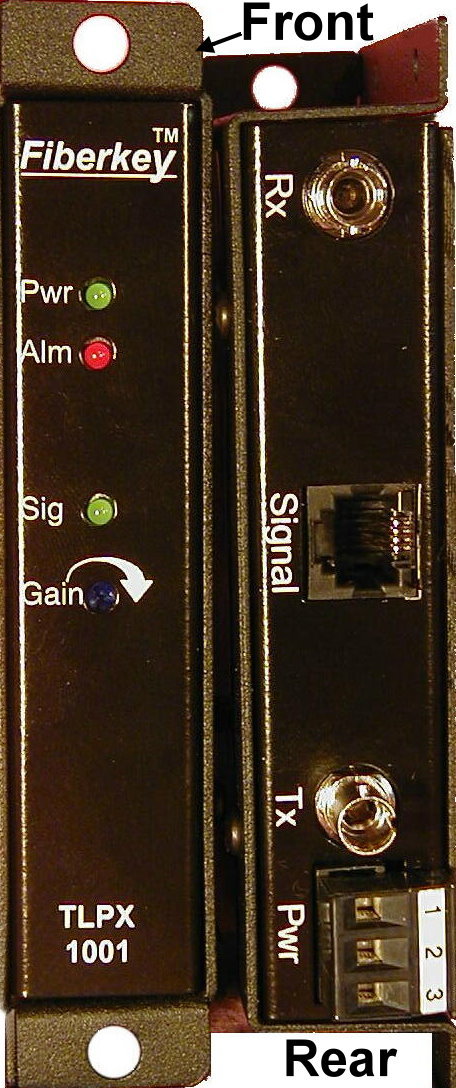

TLPX-1001 / TLLX-1001     Telephone/Intercom     Click for larger TLLX-1001 Photo
For Tone-type “POTS”* Applications

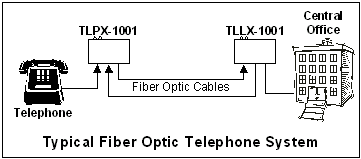

 Fiber Optic Telephone Application


The TLPX/TLLX-1001 system consists of the TLPX-1001 transmitter and TLLX-1001 receiver. Both units provide a fiber optic interface between a standard tone-type telephone and the standard US telephone line (POTS*). All functions including full duplex audio, dial tone, ringing and connect/disconnect are supported. Using a pair of TLPX-1001 you can create a phone to phone intercom system.

Both multimode and single-mode fiber versions are available and connections to and from the telephone and telephone line are by means of standard modular plugs. In addition, integral LEDs  are provided on both units to continuously indicate the presence of the off-hook condition as well as the presence of operating power making system troubleshooting simple.


Specifications Important Features
Audio Bandwidth
 (minimum)
 300 Hz to 3000 Hz    · Standard "POTS" US
    Telephone Line
TLLX-1001 Compatibility Standard US Telephone Line  · Multimode & Single-mode
      versions
TLPX-1001 Compatibility Tone-type telephone  · Intercom compatibility
    with two TLPX-1001 Units
Input/Output Impedance  75 ohms  · Stand-alone, DIN or Rack
    Mountable (same unit)

Input/Output Level  1 volt pp
Noise Level  50dB minimum
Ringing Voltage  90 V nominal, 20Hz
Operating Wavelength 850, 1310 or 1550nm
Optical Output Power  -16dBm (multimode),
 -16dBm (single-mode)

Optical Loss Budget  0-10dB (multimode),
 0-10dB (single-mode)

Signal Connectors  RJ-11
Humidity <95% non-condensing
MTBF (per MIL HBK 217) >120,000 hours
Power Requirements  11-18 VAC/DC @150mA
Physical Size (mm)  5.0” x 3.0 x 1.0"
 (127mm x 76mm x 25.4mm)


Notes;  All specifications are subject to change without notice
*“POTS” signifies “plain old telephone service”.
