For Visual, Audible and Remote
Indications of Alarm Conditions

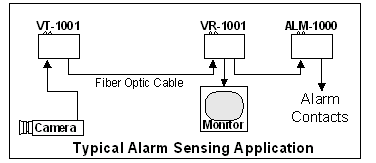

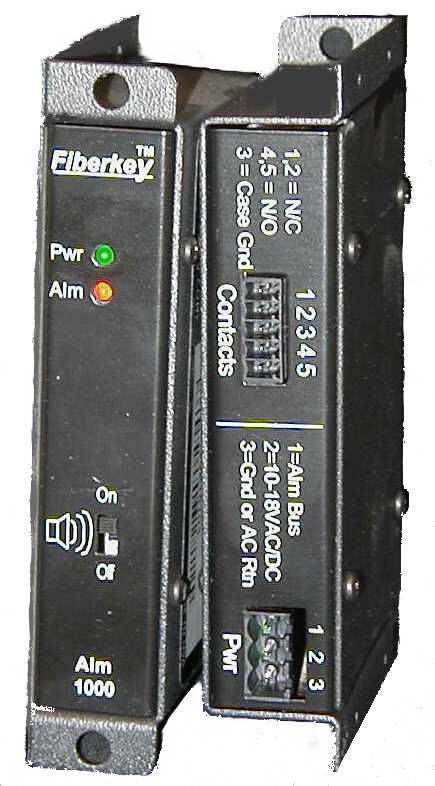

The Litelink ALM-1000 provides an indication of an alarm condition that occurs in any
Litelink fiber optic transmission module to which it is connected.
When an alarm condition is sensed, a red indicator LED on the unit begins to
blink and an audible beeper begins to sound. In addition, a set of SPDT
contacts are activated for the operation of a remote device.
The ALM-1000 may be used to detect the loss of a signal, or to detect the
occurrence of a broken fiber depending on the module it is connected to. The
unit may be used in either a stand-alone mode or mounted to any of the RMP
series of rack mounting panels.
Specifications
Important Features
Compatibility
Any
LuxLink? module
· Visual
and Audible Indications
Visual Indicator
Blinking Red LED
· Remote SPDT
Alarm Contacts
Audible Indicator
Beeping Piezo Sounder
·
Stand-alone, DIN or Rack
Mountable (same unit)
Controls*
Sounder On/Off
Contact Ratings
125VAC 0.5A, 24 VDC 1A
Remote Alarm Contacts
SPDT
Contact Ratings
0.5 A @ 125 VAC
1.0 A @ 24 VDC
Remote contact Connector
Removable Terminal Block
Operating Temperature
-35 to +75 °C
Humidity
<95% non-condensing
MTBF (per MIL HBK 217)
>120,000 hours
Power Requirements
11-24 VAC/DC @100mA
Physical Size
(mm)
5.0" x 3.0" x 1.0";
(127mm x 76mm x 25.4mm)
* Red Alarm LED and Remote Alarm Contacts cannot be turned off.
Note that all specifications are subject to change without prior notice.
