| Color Camera |
ACC-3002
|
High Resolution: > 420 TV LINE
Sensitivity: 0.1 LUX /F1.2
S/N Ratio: MORE THAN 48 dB
Back Light Compensation:
BLC ON/OFF
Auto Iris Lens Control: VIDEO AND DC DRIVER
Lens Mount: C OR CS
Power Source: AC24V
Synchronization: INTERNAL
Dimensions: L x W X H MM:
95 X 58 X 48 |

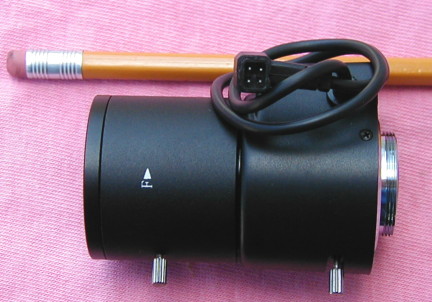

| Vari Focal Lens |
ACC-3010
|
2.8-12mm
DC auto iris
CS mount
F1.4 |
| Housing |
ACC-3020
|
Forward opening hinged lid
Aluminum construction
Designed for indoor/outdoor application
Easy access for service and installation
Cable entry holes on bottom of enclosure
Mounting plate for outdoor bracket on bottom of enclosure
Beige Color
Dimensions L x W X H
15.5" X 5.5" X 4.25"
|

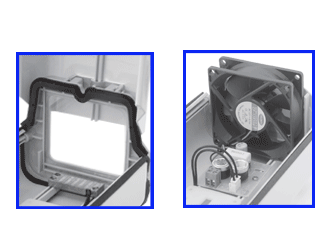

| Housing, Heater & Blower |
ACC-3021
|
24 VAC
Heater (On 15?C, Off 25?C)
(0.07A, 1.7W)
&
Blower (On 40?C, Off 30?C)
(0.07A, 1.7W) |
| Housing Mount Bracket |
ACC-3025
|
Aluminum
12" Height
360° Swivel Angle Rotation
180° Tilt Angle
Color: Beige
Mount on Interior wall or ceiling
|
Color Monitor
14" |
ACC-3034
|
Cream Metal Cabinet
420 TVL Resolution
|

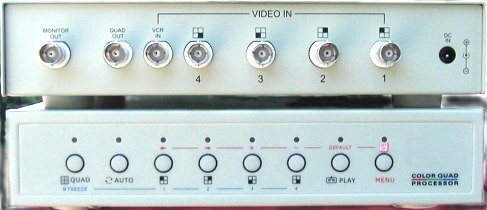

| Color Video Quad Processor |
VQ-2004
|
Picture Refresh Rate:
NTSC 60 Field/Sec, PAL.
Resolution: (H X V) :
NTSC : 860 x 525, PAL.
Video Input Port:
BNCX4 Cameras + BNCX1 VCR Play In
Video Output Port:
BNCX4 Cameras + BNCX1 VCR Play In
Video Output Signal:
1 VP-P/75 CVBS OUT.
Video Output Format:
Full/Quad/Freeze/Auto Switchable Programmable Video
Freeze Duration:
From 1 Sec. to 99 Sec.
Title Generator:
Up to 8 Characters each Channel
Timer Generator: Built-inReal Time Clock
Dimensions: 218(W) x 202(D) x 44(H) MM.
Power Source: DC 9V ~ 12V
Power Consumption: 410MA @12V |
| Power Supply |
PS-2420US
|
24VAC 50VA |
