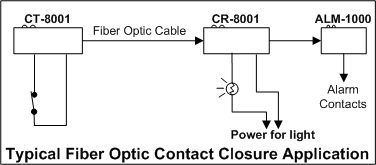

CT/CR-8001	Contact Closure (1 Channel)
*For Contact Closure or Status Monitoring Applications*

The LiteLink^® CT/CR-8001 system consists of the CT-8001 transmitter and CR-8001 receiver. Both units utilize digital encoding techniques to transmit and receive one contact closure over a single optical fiber conductor. For an 8-channel version see the CT/CR-7008

The CT-8001 may be activated by dry contacts or TTL signals and the CR-8001 will reproduce these inputs as isolated output contact closures corresponding to the respective input signal. All inputs are transient protected against excessive surges present on the signal and power leads. The unit is completely fail-safe in that a loss of operating power or a broken fiber will force all contacts to the open condition.

Specifications		Important Features
Number of Channels	One	· Low Cost
Transmitter Input	Dry Contact Closure or TTL	· Signal & Power & Link Indicators
Tx Input Impedance	3 K Ohms maximum	· Multimode & Single-mode versions
Receiver Output	Relay Contact Closure	· Stand-alone, DIN or Rack Mountable (same unit)
Output Contact switching A	0.5 A @ 125 VAC (62.5VA) 1.0 A @ 24 VDC
Output Contact Resistance	100 Milliohms maximum
Operating Wavelength	850, 1310 or 1550nm
Speed of Response	10 ms maximum
Operating Temperature	-35 to +75 °C
Optical Connectors	ST (multimode) FCPC (single-mode)
Optical Loss Budget	0-10 dB (multimode), 0-12 dB (single-mode)
Humidity	<95% non-condensing
MTBF (per MIL HBK 217D)	>120,000 hours
Signal Connector	Removable Terminal Block
Power Requirements	11-24 VAC/DC @150mA
Physical Size (mm)	5.0" x 3.0" x 1.0"; (127mm x 76mm x 25.4mm)
