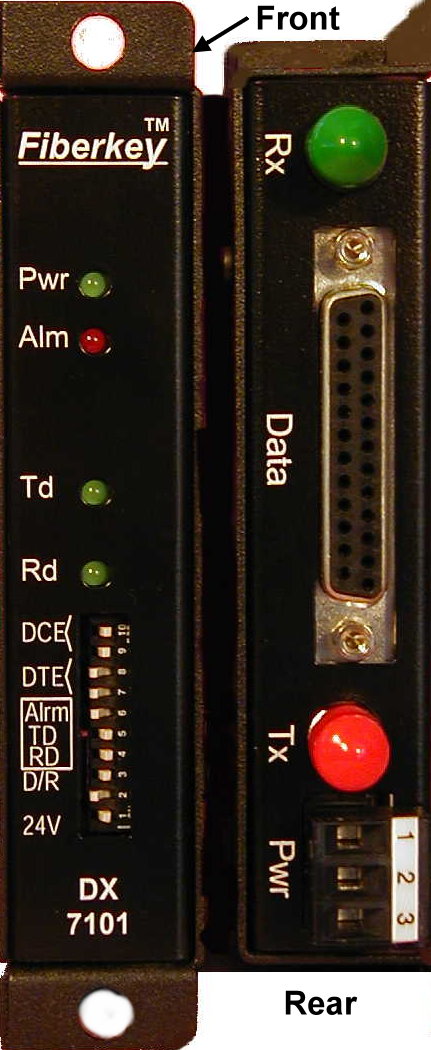

The LitelinkDX-7101 is a data transceiver designed to transmit and receive
RS-232 signals in a wide range of diverse applications. The unit is designed

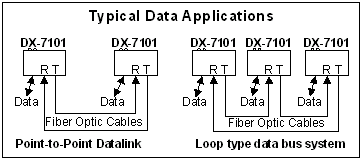

to operate in simplex, full duplex or drop-and-repeat modes and can easily
be user configured for DTE or DCE operation. The DX-7001 will operate
continuously at all data rates from DC to 200 Kb/sec.
Both multimode and single-mode versions are available and installation is
totally adjustment free. In addition, integral indicators are provided to
continuously indicate the presence of data signals as well as the presence
of operating power making system troubleshooting simple.
Specifications
Important Features
Data Transmission Rate
DC to 200 Kb/s
· DC to 200 Kb/s
Data Rate
Protocols Supported
RS-232
· Fully
Adjustment Free
Signal Connector
Industry Standard DB-25F
· DB-25F Signal
Connector
Operating Modes
Simplex, Duplex, Drop-and-
Repeat
· Signal & Power
Indicators
Optical Connectors
ST (multimode)
FCPC (single-mode)
· Stand-alone,
DIN or Rack
Mountable (same unit)
Configuration
DTE or DCE
Operating Wavelength
850, 1310 or 1550nm
Optical Output Power (typ)
-14 dBm (multimode),
-10 dBm (single-mode)
Optical Loss Budget
0-15 dB (multimode),
0-18 dB (single-mode)
Operating Temperature
-35 to +75 °C
Humidity
<95% non-condensing
MTBF (per MIL HBK 217D)
>120,000 hours
Power Requirements
11-24 VAC/DC @150mA
Physical Size
5.0" x 3.0" x 1.0"
(127 x 76 x 25.4mm)
Note all specifications are subject to change without notice
