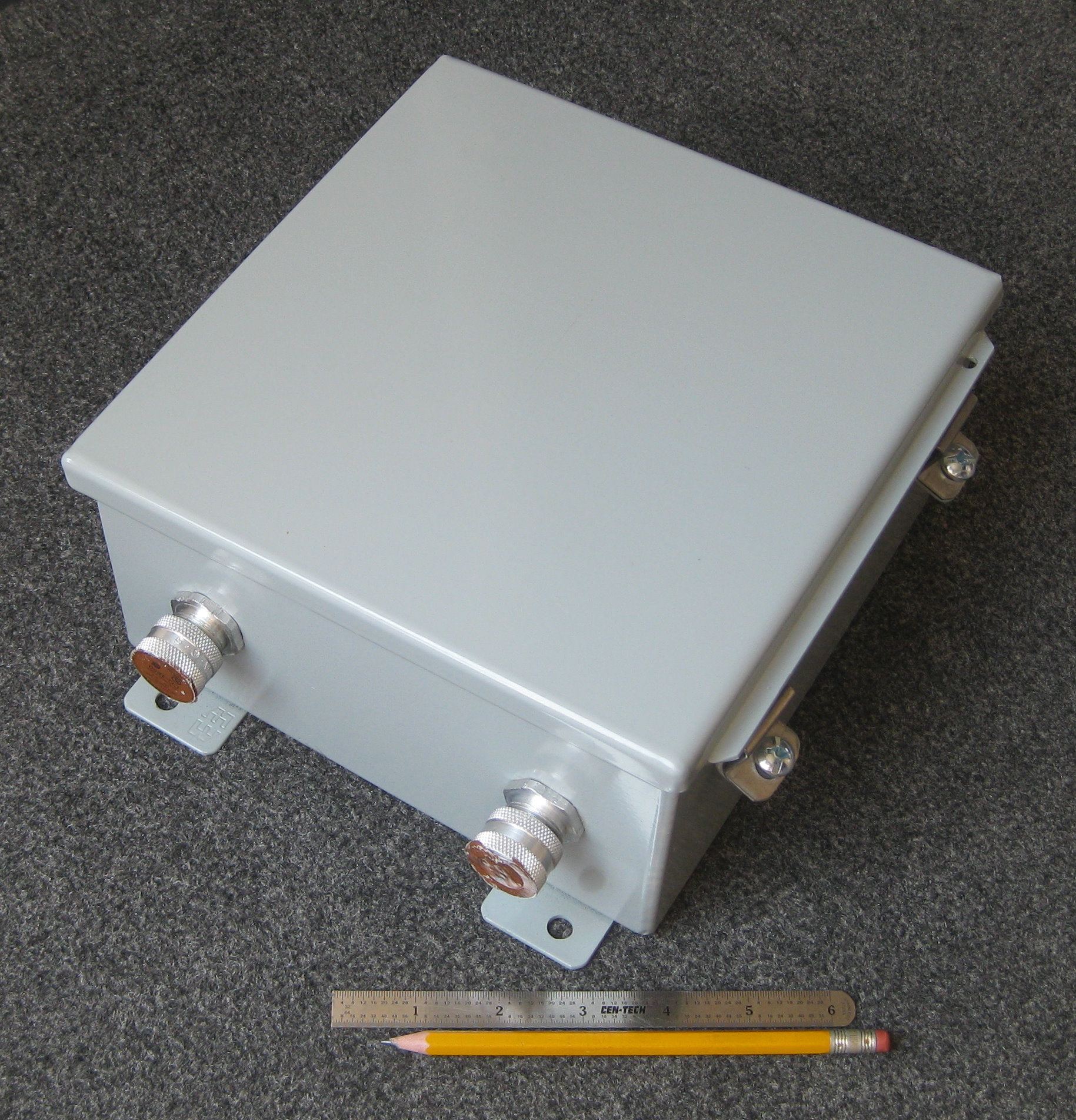

The ENCL-1002 consists of a rubber gasket sealed; weatherproof NEMA
enclosure and companion fittings that can be used to mount one or two
standard Liteway fiber optic transmission modules in an outdoor environment.
Specifications
Important Features
Weather Rating
EIA NEMA 12
·
Fully Weatherproof
Number of Feed-throughs
2
· UL 508 Type 12, 13
Operating Temperature
-35 to +75 °C
· CSA Type 12, 13
Material
Powder Coated
Steel
· RoHS Compliant
Humidity
<95% non-condensing
Weight
1 lb.
Physical Size (mm)
8.0" x 8.0" x 4.0"
(203mm x 203mm x 101mm)
Note all specifications are subject to change without notice Copyright 2025
Fiber Optic Communications Systems
