The LiteLink® PS-1210 is a stand-alone or rack mountable power supply that may be used to power multiple
Liteway fiber optic
transmission units.

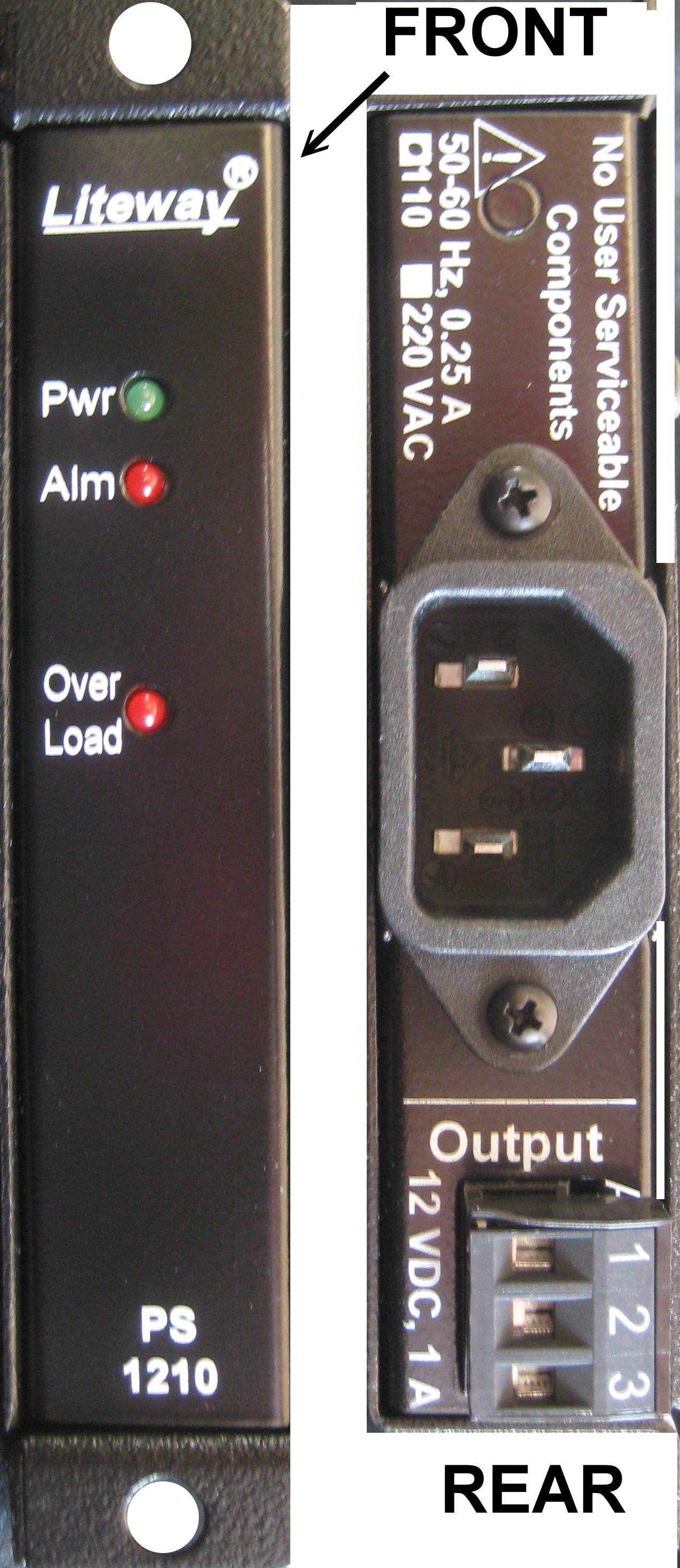

This power supply has power, overload and alarm
indicators. Internal fuses protect the unit in the event of an overload and
will automatically reset when the overload condition is removed. The power

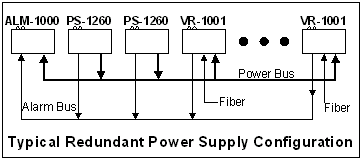

supply has the ability to be paralleled for redundant operation and are "hot
swappable".
This efficient supply is compliant with the US Energy Independence and
Security Act of 2007 and current California Energy Commission (CEC)
efficiency standards.
Specifications
Important Features
DC Output Voltage
12 V unregulated* (12-17VDC)
· Redundant
Operation
and "hot swappable"
DC Output Current
1 Amp
· Self Resetting
Fuse
AC Input *
US 115 VAC, 50/60 Hz
EU 230 VAC, 50/60 Hz
UK 240 VAC, 50/60 Hz
AU 240 VAC, 50/60 Hz
· Power &
Overload Indicators
AC Input Connector
IEC 60320 C14
· Stand-alone,
DIN or Rack
Mountable (same unit)
Indicator Lights
Power, Overload, Alarm**
Operating Temperature
-35 to +75 °C
Humidity
<95% non-condensing
MTBF
>1000,000 hours
Weight
1 lb.
Physical Size (mm)
7.0" x 5.0" x 1.0"
(178mm x 127mm x 25.4mm)
Note all specifications are subject to change without notice
* Output can be as high as 17VDC with no load.
** The Alarm light is used to indicate a failure of one supply
when two or more are connected for redundant operation.
