The LiteLink® PS-1260 is a stand-alone or rack mountable power supply that may be used to power multiple
Liteway fiber optic transmission units.

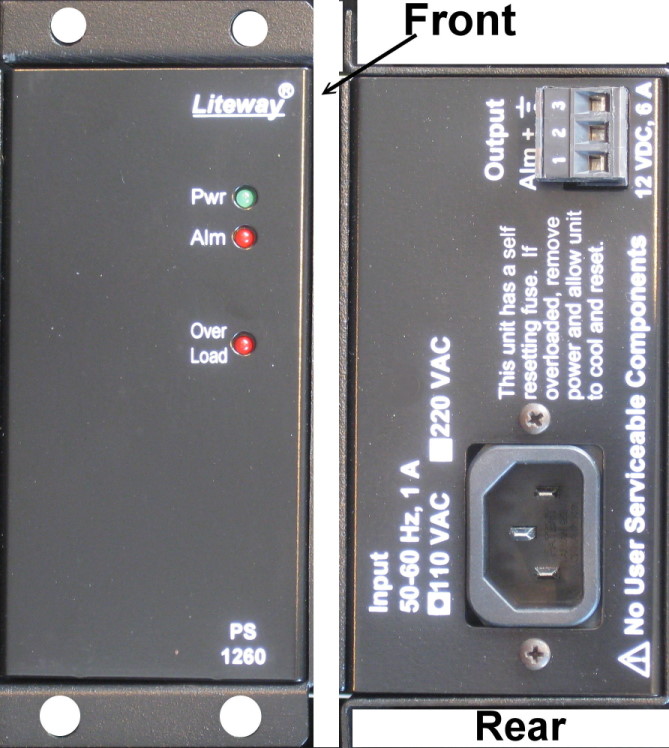

This power supply has power, overload and alarm indicators. Internal
fuses protect the unit in the event of an overload and will automatically
reset when the overload condition is removed. The power supply has the
ability to be paralleled for redundant operation and are "hot swappable".
This efficient supply is compliant with the US Energy Independence and
Security Act of 2007 and current California Energy Commission (CEC)
efficiency standards.
Specifications
Important Features
DC Output Voltage
12 V unregulated* (12-17VDC)
· Redundant
Operation and
"hot swappable"
DC Output Current
6 Amperes
· Self Resetting
Fuse
AC Input
US 115 VAC, 50/60 Hz
EU 230 VAC, 50/60 Hz
UK 240 VAC, 50/60 Hz
AU 240 VAC, 50/60 Hz
· Power &
Overload Indicators
Humidity
<95% non-condensing
· 6A version Stand-alone,
DIN
or Rack Mountable (same unit)
AC Input Connector
IEC 60320 C14
Indicator Lights
Power, Overload, Alarm**
Operating Temperature
-35 to +75 °C
MTBF
>100,000 hours
Physical Size (mm) & weight
7.0" x 5.0" x 2.23"
(178mm x 127mm x 56.6mm) 2lbs.
Note all specifications are subject to change without notice
* Output can be as high as 17VDC with no load.

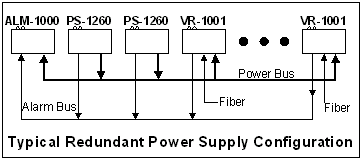

** The Alarm light is used to indicate a failure of one supply
when two or more are connected for redundant operation.
