The LiteLink® RSW-1002 is a two input, single output automatic switch designed for

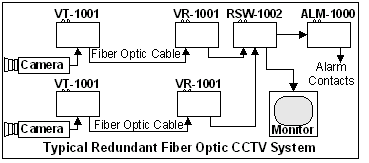

those applications where the loss of video is critical. The RSW-1002 may be used with any fiber optic system to
implement a redundant, fail-safe video transmission system.
The unit operates by accepting a main and backup video signal. Upon the loss
of either signal, the RSW-1002 will automatically switch to and provide the

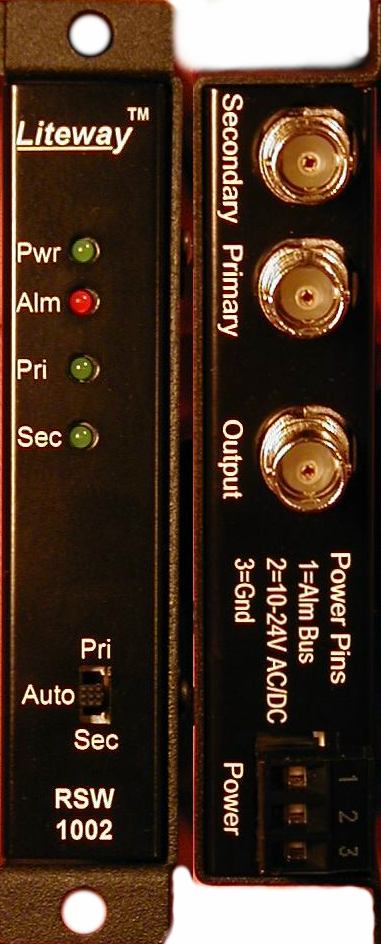

remaining signal at it?s common output. Indicators are provided to continuously
indicate the presence of video signals in each channel as well as the
presence of operating power making system troubleshooting simple
Specifications
Important Features
Video Bandwidth (per channel)
DC to 100 MHz (+0,-3dB)
· DC to 100MHz
Video
Bandwidth
Input/Output Impedance
75 ohms
· Alarm
output with ALM-1000
Input/Output Level
1 volt peak to peak
· Auto or
Manual operation
Signal/Noise Ratio
75dB minimum
· Signal & Power
Indicators
Differential Gain
0.5% maximum
· Stand-alone, DIN
or Rack
Mountable (same unit)
Differential Phase
0.5? maximum
Field Tilt
1% maximum
Compatibility
NTSC, PAL, SECAM
Signal Connectors
BNC
Indicators
Pwr, Input 1, Input 2, Alm
Operating Temperature
-35 to +75 °C
Humidity
<95% non-condensing
MTBF (per MIL HBK 217)
>120,000 hours
Power Requirements
11-24 VAC/DC @150mA
Physical Size (mm)
5.0" x 3.0" x 1.0";
(127mm x 76mm x 25.4mm)
Note all specifications are subject to change without notice
