VLD-3002

Video Loss Detector

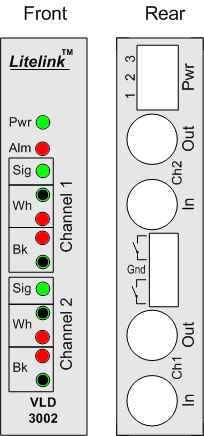

   Video Loss Detector End panels
For valid video present detection

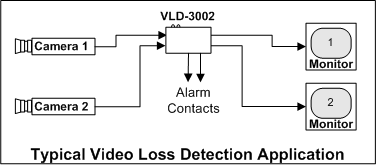

 Video Loss Detector application


The LiteLink® VLD-3002 provides alarm indication when there is a loss of video sync, when there is an extended period of black (obstructed camera lens) or white (intentional blinding camera video signals). The VLD-3002 is a dual channel unit. For each channel there are: Signal, Black, & White level Indicators; Adjustable trigger points for black and white alarm levels; and a normally open relay contact that closes on an alarm condition.

The VLD-3001 is a single channel version of the VLD-3002. The VLD-1001 is a low cost single channel unit which only detects presence video only (via sync) and not black/white levels. All units can be mounted in our 1U, 2U or 3U racks for multi-channel monitoring. Additional alarm contacts and an audible alarm can be achieved with an optional ALM-1000.

Specifications Important Features
Compatibility  NTSC or PAL    · DC to 30 MHz Video Bandwidth
Video Bandwidth  DC to 30 MHz (+0,-3cB)    · BNC Loop through
Video Input/Output Levels  1 volt peak to peak  · Low Cost
Input/Output Impedances  75 ohms  · Alarm Contacts
Signal/Noise Ratio  85 dB minimum  · Stand-alone, DIN or Rack
    Mountable (same unit)
Differential Gain  0.1% maximum
Differential Phase  0.1? maximum
Field Tilt  0.05 maximum
Response Time  3 seconds typical (Note: the
"H" version of each model
reduces the response time to
0.5 seconds)
Signal Connectors BNC
Black level alarm adjustment  100mV to 700mV
White level alarm adjustment  100mV to 1V
External contact connector Removable terminal block
Dry Relay Contacts 0.5 A @ 125 VAC
1.0 A @24 VDC
Indicators  Power, Alarm

Pricing (qty 1-10)

Channel Indicators  Signal,  White, Black         VLD-1001     $189 USD
        VLD-3001     $248 USD
Operating Temperature -35 to +75 °C         VLD-3002     $390 USD
Humidity <95% non-condensing
MTBF (per MIL HBK 217) >120,000 hours
Power Requirements  11-24 VAC/DC @150mA
Physical Size (mm)  5.0" x 3.0" x 1.0";
  (127 x 76 x 25.4)

Note all specifications are subject to change without notice
