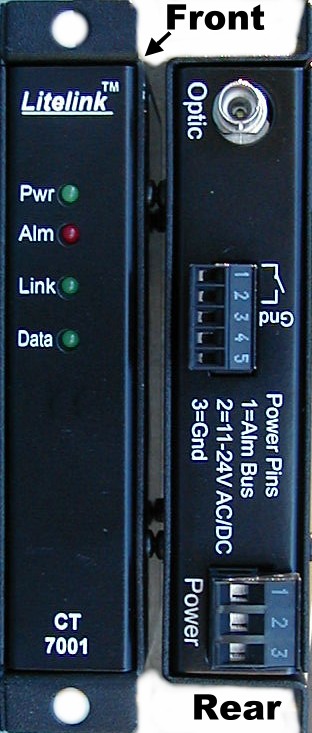

CT/CR-7001     Contact Closure   Click for a larger Photo
For Contact Closure or Status Monitoring Applications

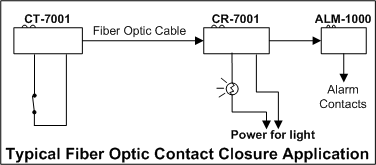

   Contact Closure Transmitter


The LiteLink® CT/CR-7001 system consists of the CT-7001 transmitter and CR-7001 receiver. Both units utilize digital encoding techniques to transmit and receive one contact closure over a single optical fiber conductor. For an 8 channel version see the CT/CR-7008

For new designs we recommend the CT/CR-8001

The CT-7001 may be activated by dry contacts or TTL signals and the CR-7001 will reproduce these inputs as isolated output contact closures corresponding to the respective input signal. All inputs are transient protected against excessive surges present on the signal and power leads. The unit is completely fail-safe in that a loss of operating power or a broken fiber will force all contacts to the open condition. Integral indicators are provided on both units to continuously indicate the link and contact closures status as well as proper operating power thereby making system troubleshooting simple.

Specifications Important Features
Number of Channels  1    · Low Cost $288 per end*
Transmitter Input  Dry contact or TTL  · Signal & Power & Link
Tx Input Impedance  3 K ohms max        Indicators
Receiver Output  Relay Contacts · Multimode & Single-mode
Output Contact Rating  0.5 A @ 125 VAC
 1.0 A @ 24 VDC		        Versions available
Output Contact carry current  2.0 A maximum  · Single model for stand
     alone or rack mount
Output Contact Resistance  100 milliohms maximum  · Din Rail Mount Option
Speed of Response  10 ms maximum
Optical Output Power  -15 dBm (multimode),
 -15 dBm (single-mode)
Optical Loss Budget  0-10 dB (multimode),
 0-12 dB (single-mode)
Signal Connectors  Removable terminal block
Power Requirements  11-24 VAC/DC @150mA
Physical Size  5.0" x 3.0" x 1.0";
127mm x 76mm x 25.4mm

Note all specifications are subject to change without notice
* For -1 models, 850nm Multi-mode.   1310nm and single models are higher cost.
