INCX-1101 /1201    Wired
 Intercom System

For Outdoor Intercom Applications

   INCX-1101  Bucket Truck Intercom


The LiteLink® INCX-1101 & 1201 is a high quality wired intercom specifically designed for non-insulated  bucket operations.

The INCX-1101, Local (cab) Intercom Transceiver Unit, utilizes Push-to-talk operation, is powered by the vehicle. This unit has an input for audible alarm, so that a tip sensor output can be utilized.

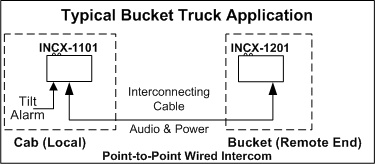

INCX-1201, Remote (bucket) Intercom Transceiver Unit, has hands free operation and is powered from the cab unit through the interconnecting cable.

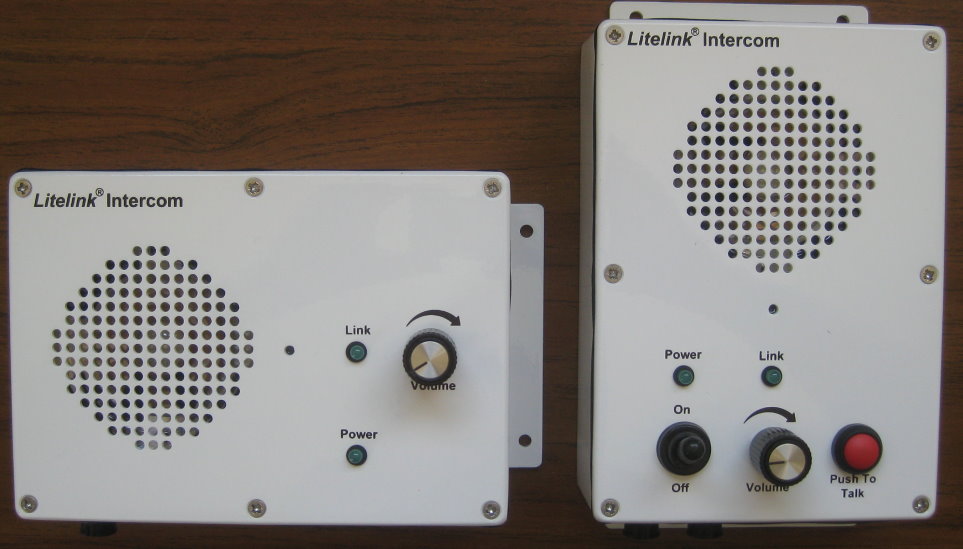

Both units contain integrated speaker & microphone, power and volume controls, optical transceiver enclosed in rugged weatherproof metal enclosures. Indicators provide link status and the presence of operating power making system troubleshooting simple.

The system will require a power cable (ie CAB-PWR-02) and interconnecting cable in lengths specific to your application needs  (ie CAB-INT-023, see below table for more options)

Click here for outline drawings
Click here for our Industrial Fiber Optic Intercoms
Click here for our Commercial Fiber optic Intercoms

Specifications Important Features
Audio Bandwidth (min)  200 Hz to 5 Hz    · Rugged Weatherproof Housing
Audio Input  Integral Microphone  · Hands Free Operation at
    Remote End

Audio Output  10 watts peak Speaker   · Distances of up to 1000 feet
     possible
Indicators  Link, Power
Electrical Isolation 10KV/inch (fiber cable alone)
Controls  Power, Push-to-Talk, Volume
Optical Connectors  Industry standard ST
External Alarm Input  11-16VDC @100 mA
Power Requirements  12 VDC nomimal
Humidity <95% non-condensing
MTBF (per MIL HBK 217D) >120,000 hours
Operating Temperature -35 to +75 degrees C
Physical Size (mm)  6.0" x 5.0" x 3.0"
(153mm x 128mm x 76mm)


Note all specifications are subject to change without notice



Standard cable lengths (custom upon request)

Model Length
CAB-INT-010 Intercom cable 10m (32.8')
CAB-INT-015 Intercom cable 15m (49.2')
CAB-INT-023 Intercom cable 23m (75.4')
CAB-INT-025 Intercom cable 25m (82')
CAB-INT-026 Intercom cable 26m (85.28')
CAB-INT-040 Intercom cable 40m (131.2')
CAB-INT-060 Intercom cable 60m (196.8')
