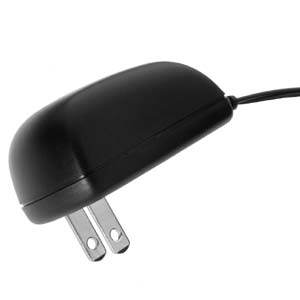

Power Supply PS-1205-US
Pdf Datasheet
Pdf Manual
The Liteway©
PS-1205-US is a stand-alone wall type plug-in power supply that may be used
to power one or two fiber optic transmission units Please
contact us for other countries. Cost $20 US qty 1-10
| AC Input |
Use 100-240 VAC 50/60 Hz 0.2A |
| AC Input Connector |
US Wall Plug |
| DC Output Current |
500 milliamperes |
| DC Output Voltage |
12 V +/- 5% at 500mA load |
| Cord Length |
6 feet |
| Indicator Lights |
None |
| Operating Temperature |
0 to +40 °C
|
| Storage Temperature |
-25 to +85 °C |
| Relative Humidity |
5%-90% |
| Physical Size (mm) |
3.07" (78.0) L x 1.91"(48.5) W x 1.33"
(33.8)D |
Note. The PS-1205 is made in China. For a USA made power supply
see the PS-1210.
|
